Phosphogypsum Plant

Description

Phosphogypsum plant is composed of hot air furnace, preheating system, calcining system, dust collecting system, modifying system, conveying system, packing system and storage system.

Application of Phosphogypsum Powder Production Line

After the phosphogypsum is treated with our production line, it can be used as construction gypsum and agricultural gypsum.

Characteristics of Phosphogypsum Plant

l. Most of phosphogypsum are attached to higher water or discharged slag in wet slurry, generally, its contents are attached to the water at 10% to 40% or more of the individual.
2. Phosphogypsum smaller particle size is generally at between 5 to 300 micron. And the production of gypsum powder can be saved when broken, but it can also generate a lot of dust, increasing the cost of removal.
3. Phospho gypsum generally contain more complex ingredients, in which the some less ingredients features hardening of the gypsum hydration properties, having a great impact on the chemical composition. PH values neutral not acidic.

Working Process of Phosphogypsum Plant

The basic process of making phosphogypsum powder is: phosphorus gypsum raw material —— preheating —— calcining —— dust collecting —— pin mill modifying —— silo—— packing machine

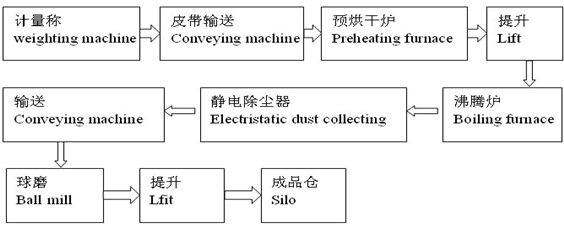

Technology Process of Phosphogypsum Powder Production Line
