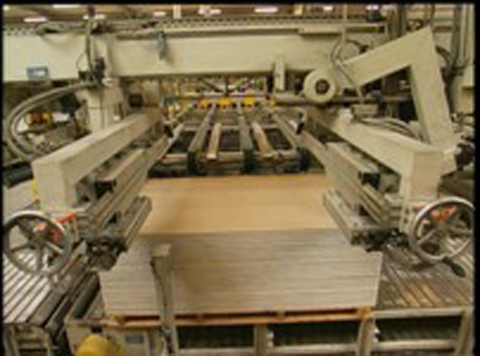

Moisture Resistant Gypsum Board Production Line

Description

Water-resistant gypsum board is designed for use on walls primarily as a base for the application of ceramic or plastic tile. It is readily identified by its green-tinted face paper and is commonly called "Green board.” It has a water-resistant core and a water-repellent face and back paper.

Application of Moisture Resistant Gypsum Board Production Line

Water-resistant gypsum board is designed for use on interior walls and ceilings in standard residential, commercial, and institutional applications where enhanced mold resistance is preferred. It is generally installed in bath, kitchen, and laundry areas where allowed by applicable code.

Advantages of Moisture Resistant Gypsum Board Production Line

Additional zone of protection against moisture and mold
Lightweight gypsum that is easy to cut and install
May be finished, painted, or wallpapered using conventional gypsum board techniques
Qualifies for numerous fire-resistance rated assembly designs for safety and performance

Basic Formula of Moisture Resistant Gypsum Board Production Line

Raw Material	Consumption	Raw Material	Consumption
Gypsum Stucco	6.8kg/sqm	Foam Agent	0.008kg/sqm
Paper	0.48kg/sqm	White Latex	0.005kg/sqm
Modified Starch	0.035kg/sqm	Water	4.8kg/sqm

Moisture Resistant Gypsum Board Production Line Capacity

Capacity	Sheets Per Day (1200 × 2400 × 9mm)	Dryer Decks	Control System
2 million sqm/year	2300 sheets/day	4 decks	PLC
4 million sqm/year	4600 sheets/day	6 decks	PLC
6 million sqm/year	6900 sheets/day	8 decks	DCS
10 million sqm/year	11500 sheets/day	10 decks	DCS
20 million sqm/year	23000 sheets/day	12 decks	DCS
30 million sqm/year	34500 sheets/day	12 decks	DCS
